Centrifugal (API 610)

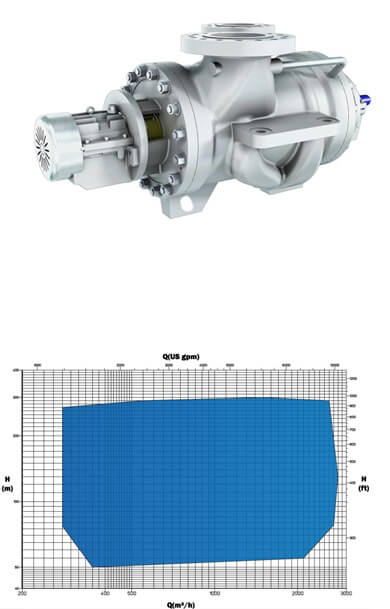

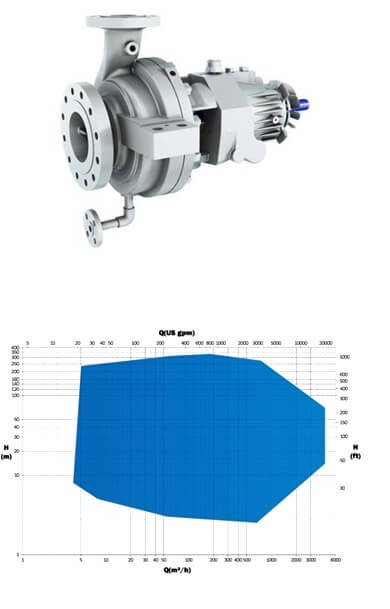

Performances

Capacity:

up to 4500 m³/h (19,800 US gpm)

Total head:

up to 320 m (1,050 ft.)

Maximum operating pressure:

60 bar (870 PSI)

Temperature operating range:

from -90 to 400°C (-130 to 752°F)

*Higher capacities and heads upon requirements

Standard materials

S5, S6, C6, A8, D1, D2

*Other materials available upon request

Industrial applications:

Petrochemical industry

Oil and Gas

Offshore

General industry

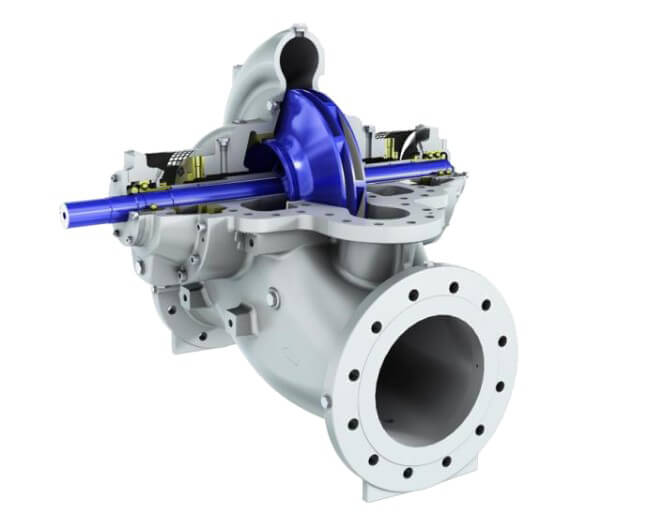

Performances

up to 4500 m³/h (20,000 US gpm)

Total head:

up to 450 m (1,500 ft.)

Maximum operating pressure:

80 bar (1,160 PSI)

Temperature operating range:

from -90 to 425°C (-130 to 800°F)

*Higher capacities and heads upon request

Standard materials

Materials as per API standards:

S5, S6, C6, A8, D1

*Other materials available upon request

Industrial applications:

Oil and Gas

Offshore

Water desalination

General industry

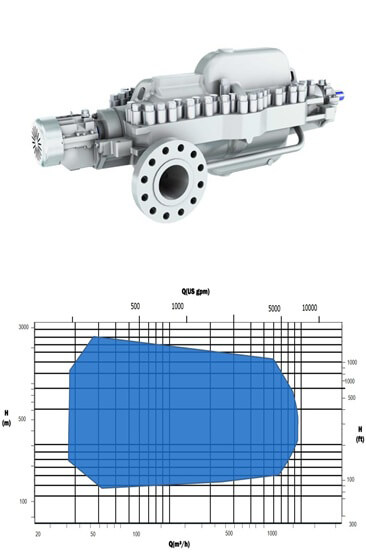

Performances

Capacity:

up to 1930 m³/h (8500 US gpm)

Total head:

up to 2740 m (9000 ft.)

Maximum operating pressure:

275 bar (4000 PSI)

Temperature operating range:

from -90 to 425°C (-130 to 800°F)

*Higher capacities and heads upon

request

Standard materials

Materials as per API standards:

S5, S6, C6, A8, D1.

*Other materials available upon request

Industrial applications:

Petrochemical industry

Oil and Gas

Offshore

General industry

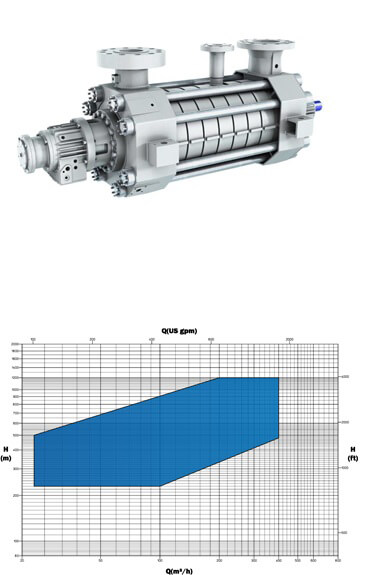

Performances

Capacity:

up to 1,200 m³/h (1,761 US gpm)

Total head:

up to 1200 m (5,300 ft.)

Maximum operating pressure:

100 bar (1450 PSI)

Temperature operating range:

up to 220°C (428°F)

*Higher design pressure upon request

Standard materials

I1, S1, S5, S6, C6, A8, D1, D2

*Other materials available upon request

Industrial applications:

BFW pump

Hydrocarbon applications

Petrochemicals

Oil and gas

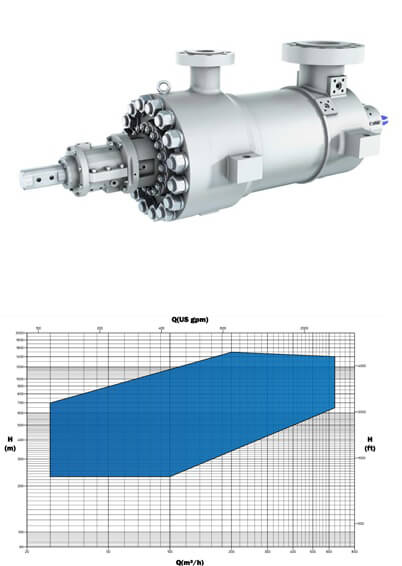

Performances

Capacity:

up to 800 m³/h (1,761 US gpm)

Total head:

up to 1200 m (3,940 ft.)

Maximum operating pressure:

200 bar (2,900 PSI)

Temperature operating range:

up to 220°C (428°F)

*Higher design pressure upon request

Standard materials

S6, A8, D1

*Other materials available upon request

Industrial applications:

Petrochemical applications

Liquefied gas

Injection pump

BFW pump

Reverse osmosis

Any pumping of a clean fluid under high pressure

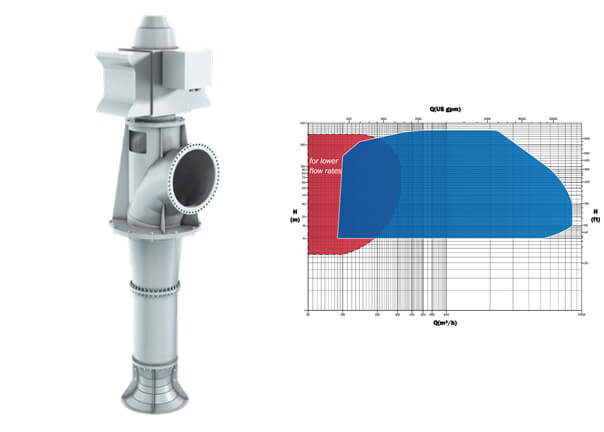

Performances

Flow:

up to 15,000 m³/h (66,000 US gpm)

Total head:

up to 350 m (1,150 ft.)

Maximum operating pressure:

50 bar (72 PSI)

Temperature operating range:

from -160 to 600°C (-256 to 1112°F)

*Higher capacities and heads upon request

Standard materials

Materials as per API standard:

S6, C6, A8, D1, D2.

Standard materials

Chemicals

Petrochemicals

Offshore industries

Electricity generation

Sea Water Intake

Pump for general applications: cooling, circulation, etc...

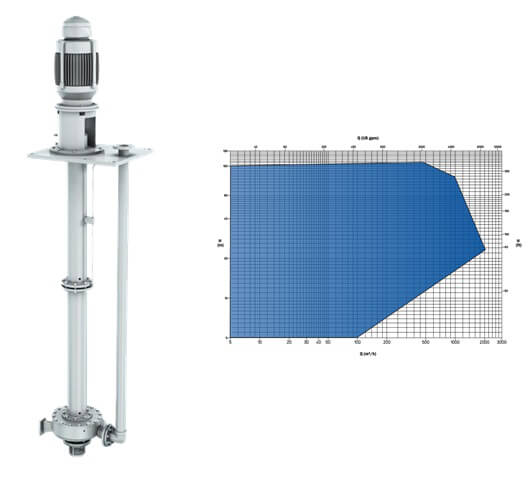

Performances

Flow:

up to 2000 m³/h (8800 US gpm)

Total head:

up to 100 m (500 ft.)

Maximum operating pressure:

40 bar (580 PSI)

Operating temperature range:

up to 200°C (392°F)

*Higher capacities and heads upon request

Performances

Materials as per API standard:

S5, S6, C6, A8, D1, D2

*Other materials available upon request

Industrial applications:

Chemical industry

Petrochemical industry

Oil and Gas

General industry

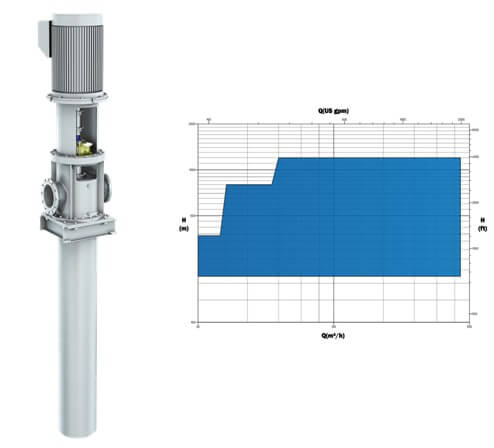

Performances

Capacity:

up to 400 m³/h (1,761 US gpm)

Total head:

up to 1200 m (3,940 ft.)

Maximum operating pressure:

100 bar (1450 PSI)

Operating temperature range:

up to 200°C (up to 392°F)

*Higher capacities and heads upon request

Standard materials

Materials as per API standards:

I1, S1, S5, S6, C6, A8, D1, D2

*Other materials available upon request

Industrial applications:

BFW

Hydrocarbon applications

Petrochemicals

Oil and Gas

Gas / steam condensate

Application with low NPSH available and high pressure
